About Us
THE RADIO CONTROL AIRPLANE MODELER SPORTS ASSOCIATION, RCSA was successful in researching the “Swarm Drone Light Show” in 2019 and received His Majesty the King's grace to organize activities to bring drones to celebrate the auspicious occasion of the coronation ceremony. May 6, 2019, from 6:00 p.m. to 10:00 p.m. at Sanam Luang. This is the first show of a Swarm Drone Light Show. in Southeast Asia (SEA) from Thai researchers from Thailand
The RCSA has been successful in this research, both in terms of drone hardware. And the software can support the control of up to 5000 drones, keeping many drones in order and precise control. which is the only innovation in ASEAN and 1 in 9 of the world. The reason why drones can transform Swarming flies in the sky into various shapes, both 2D and 3D without colliding. Because every drone will receive at least 15 satellites together with RTK integration, it can hover accurately in the sky with light from an LED below each drone. according to the rhythm set by the designer and controller All of which will be simulated through the drone control software that RCSA has developed.

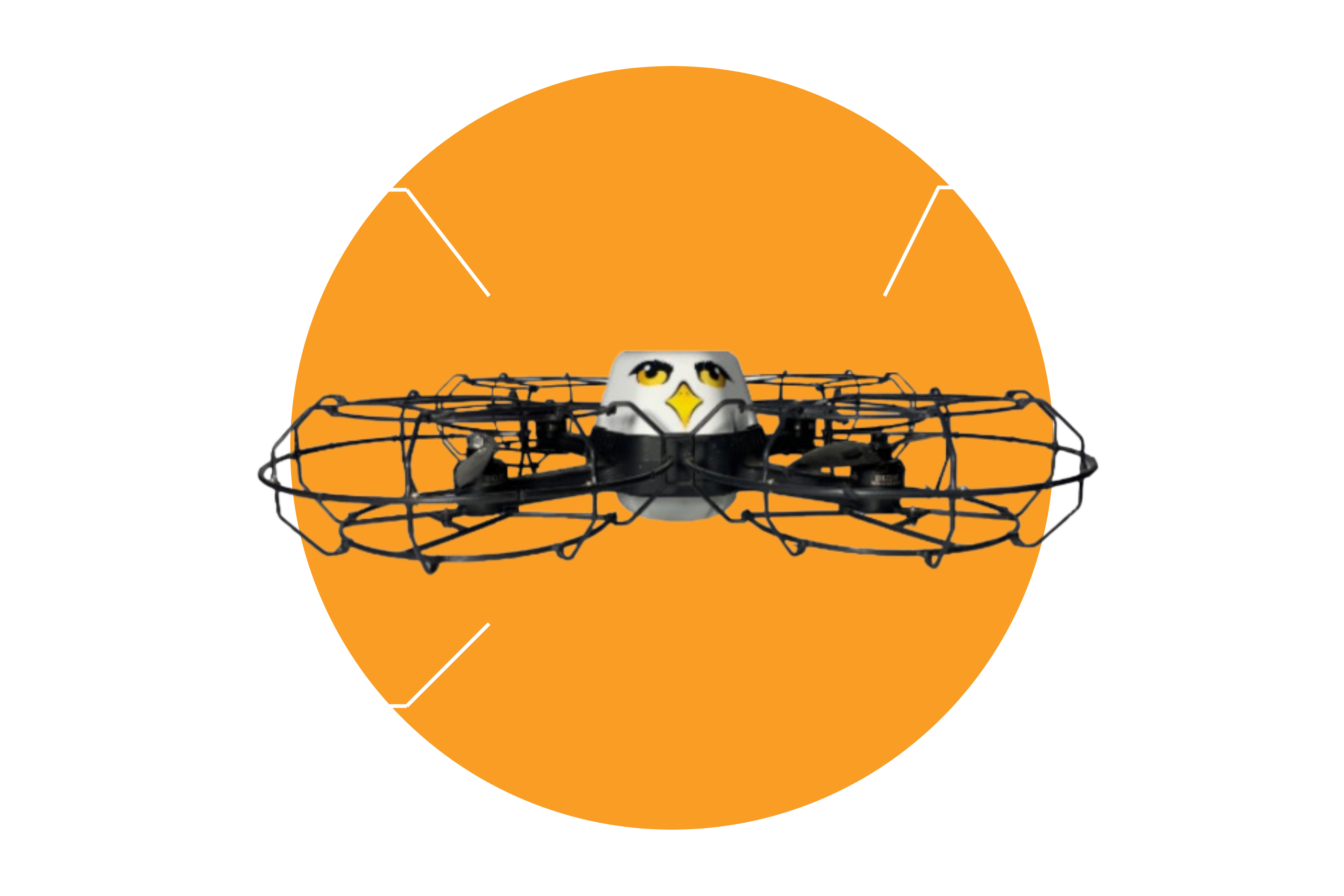

Drone Outdoor
12 min
Max Show Time
800 g
Weight
0.8 m
Performance Spacing
500 m
Max Communication range

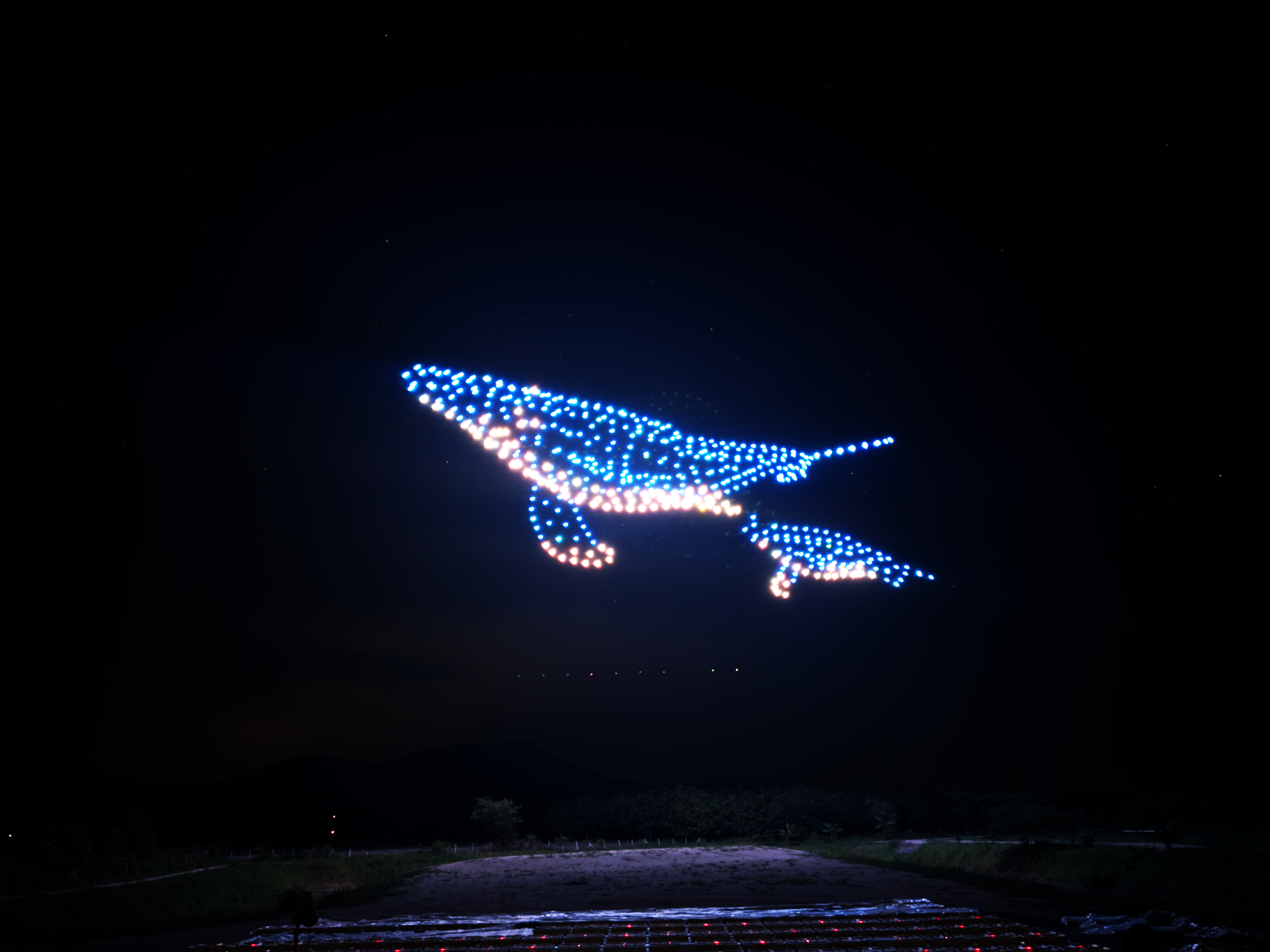

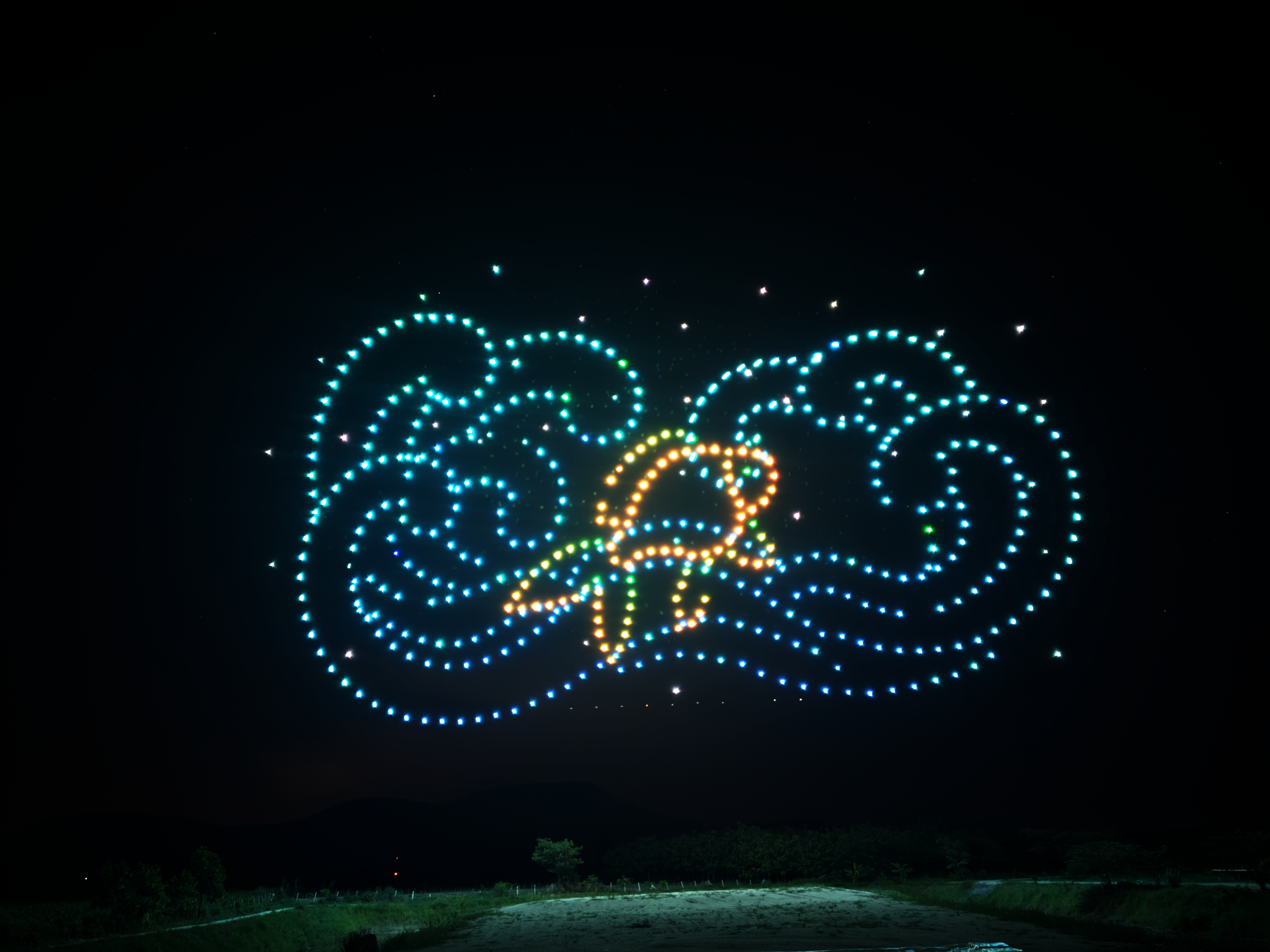

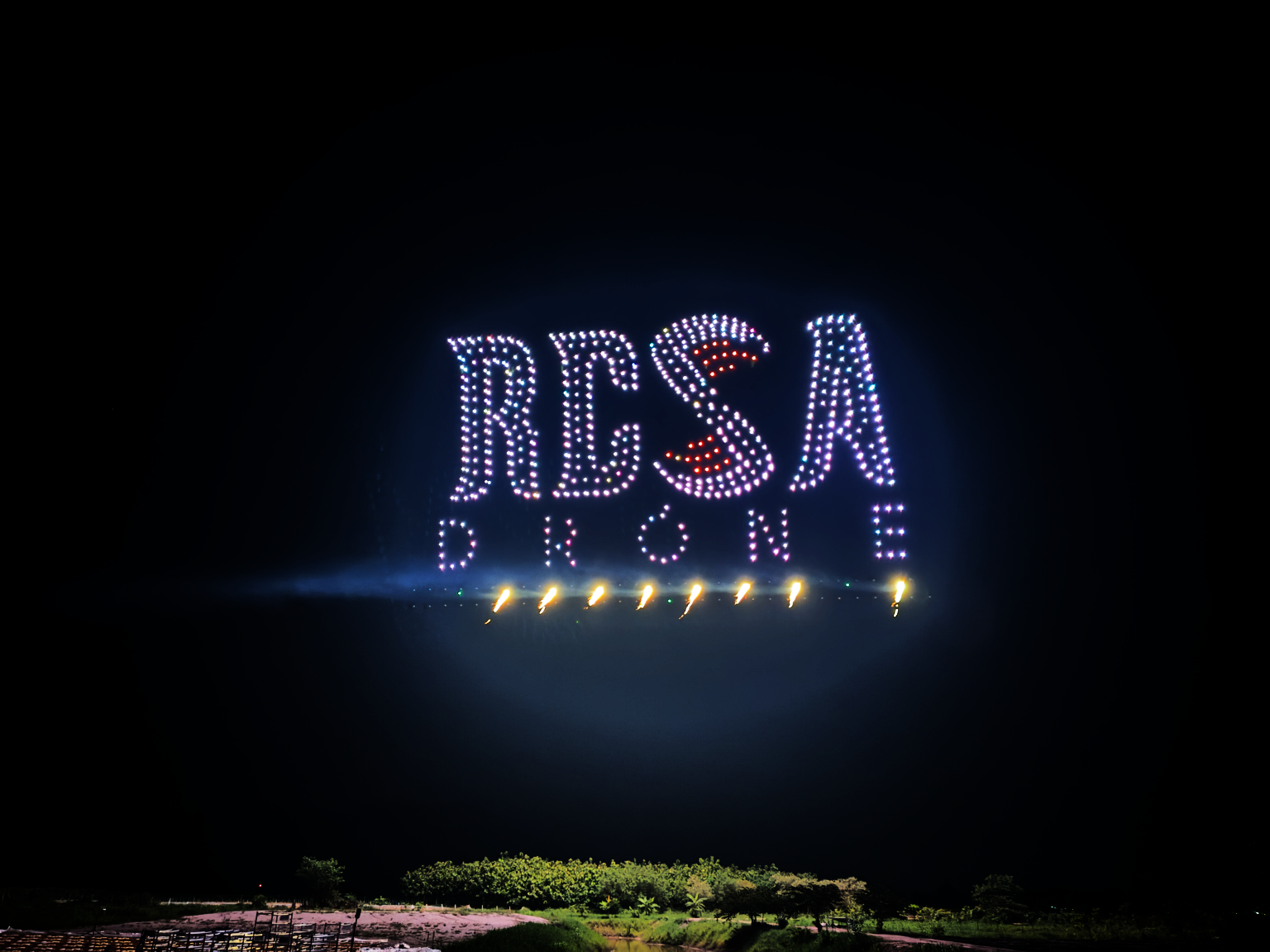

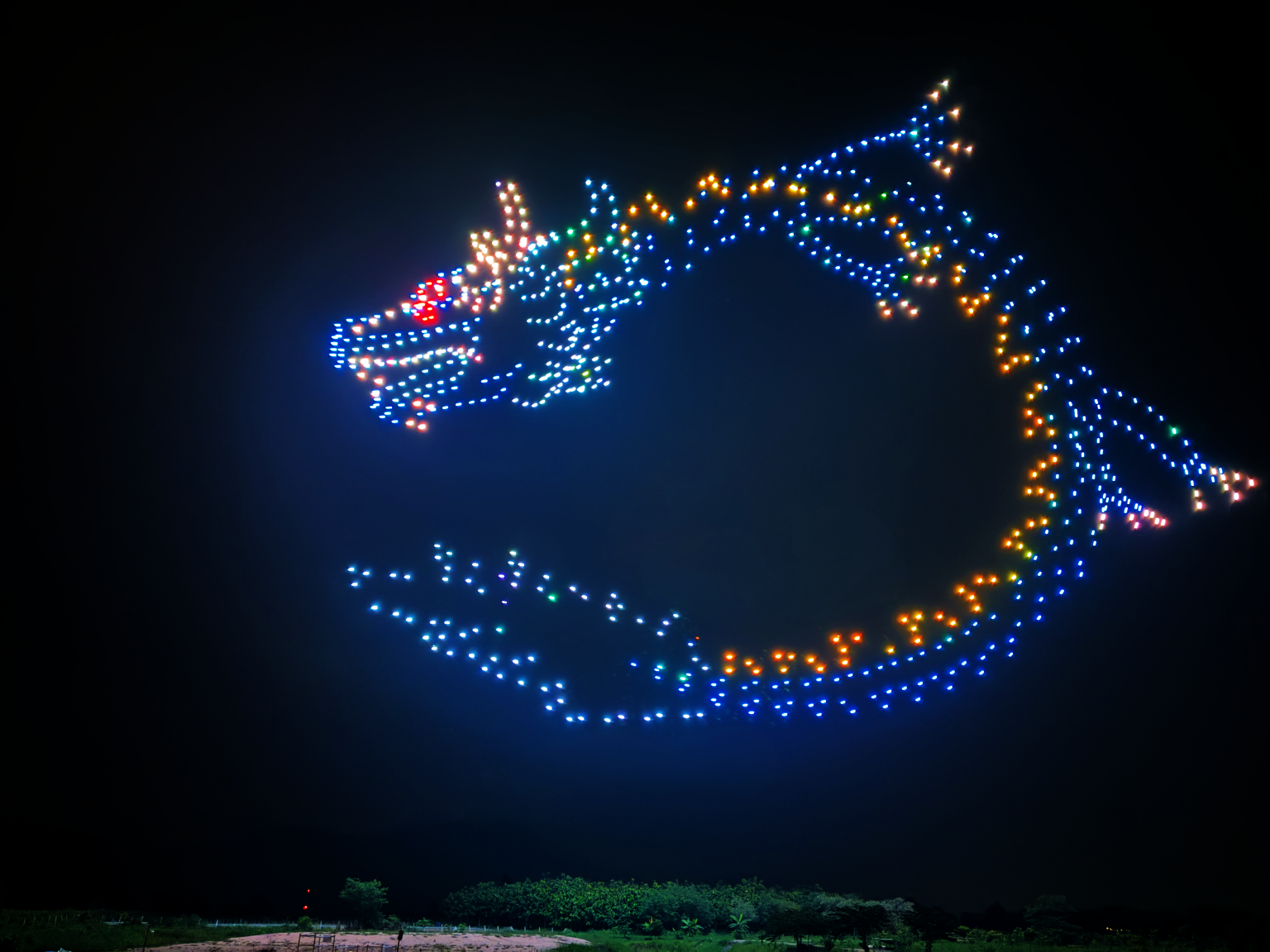

Wonderful case
.png)

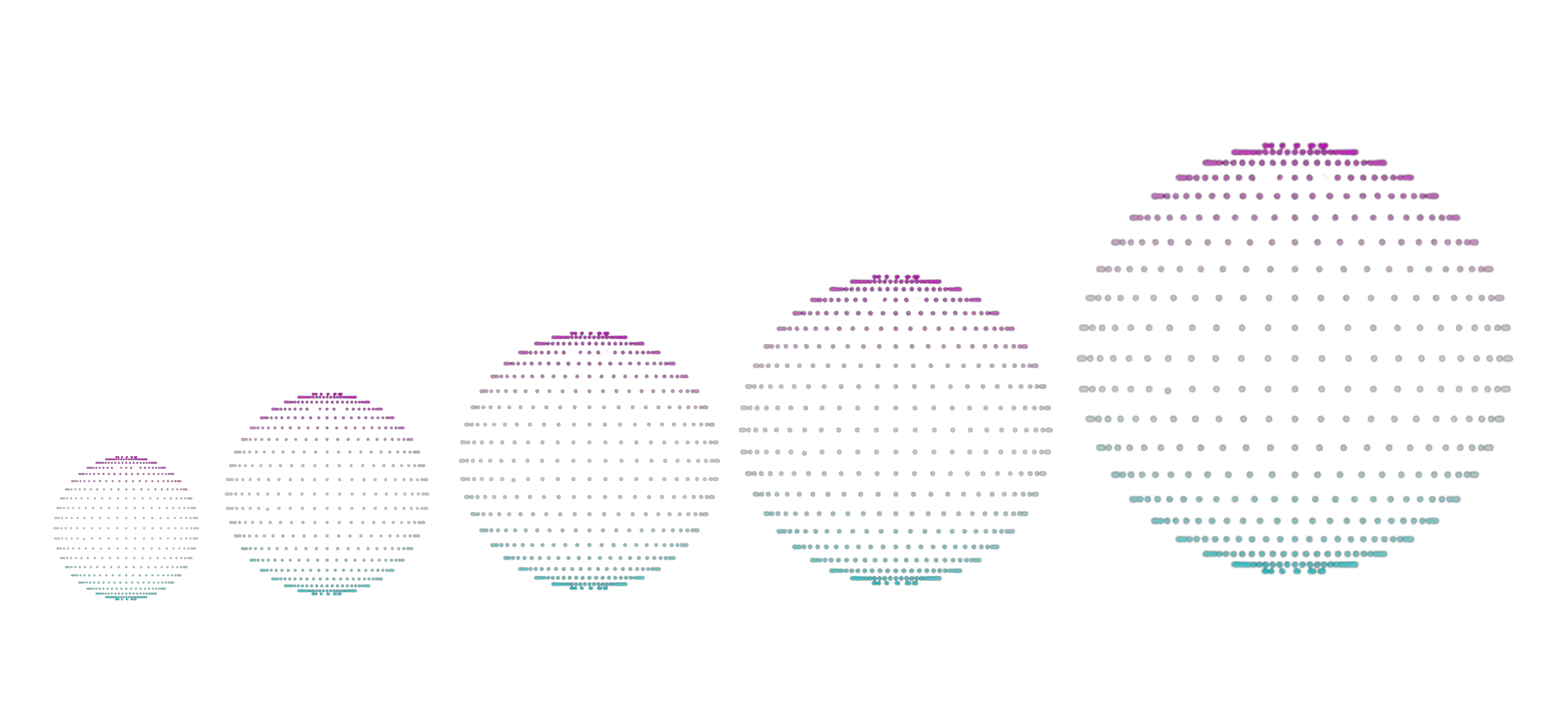

Packages
.png)

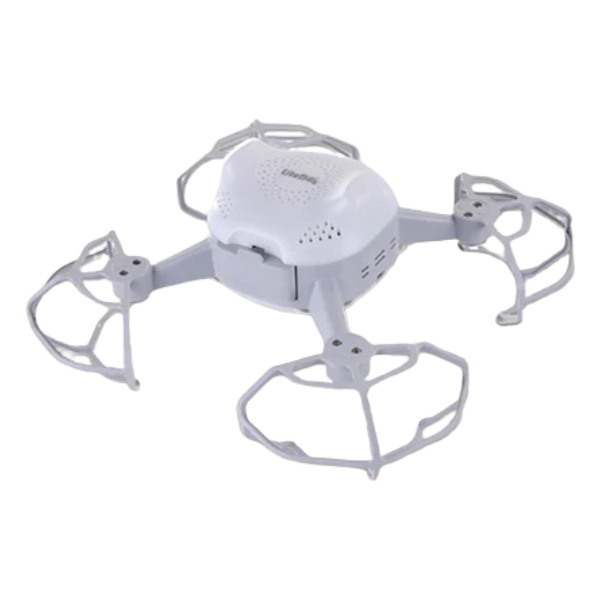

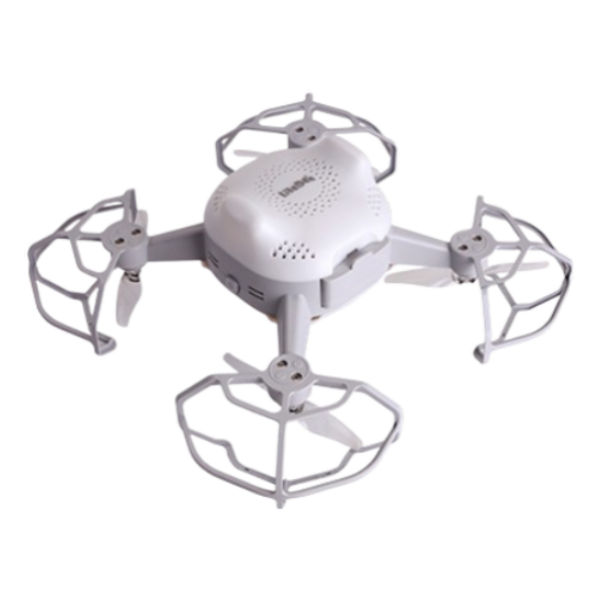

Drone Indoor
Show Case Drone Indoor

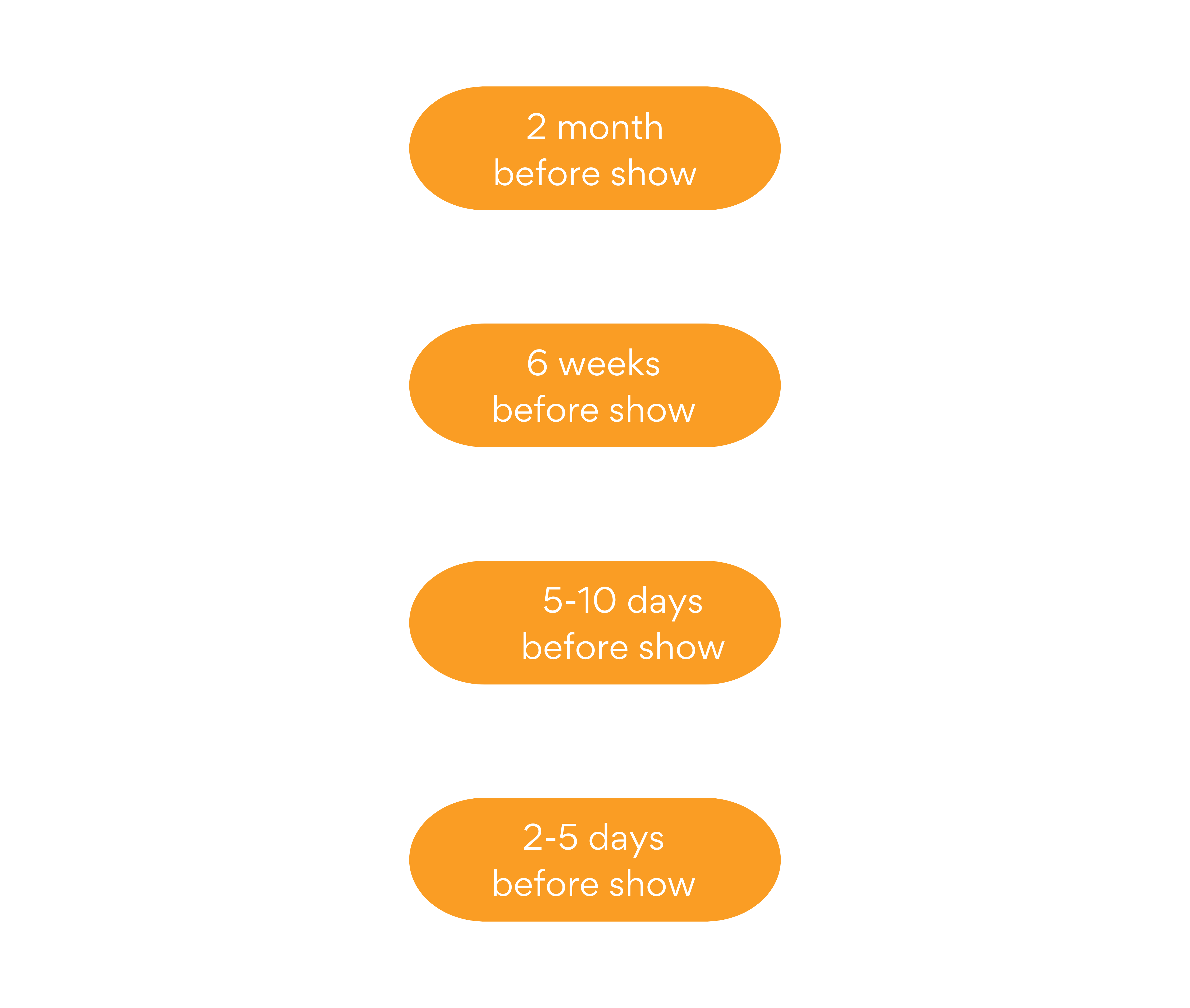

A Timeline of Preperation
Requirements
.png)

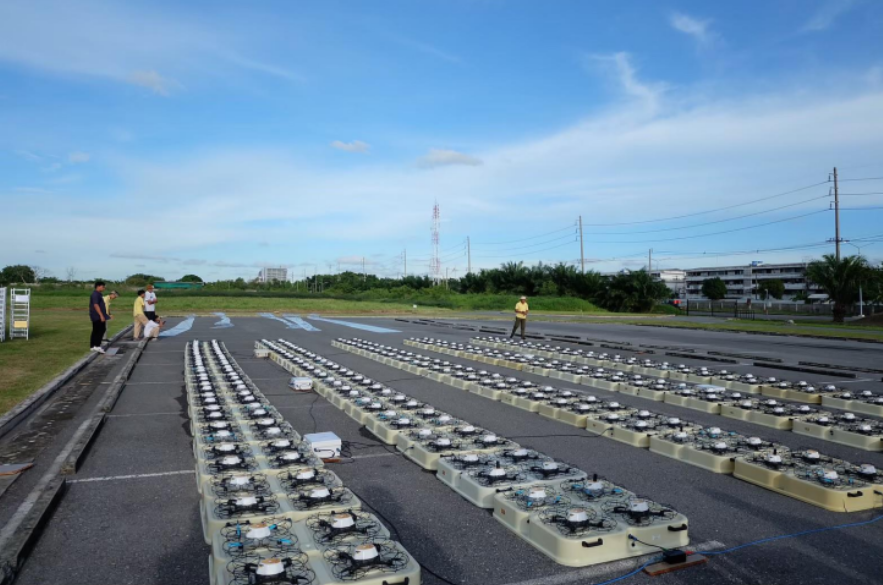

The take-off /landing Site
1.The site should be square or rectangular empty flat land*, with no tall buildings, high trees, or high-voltage transmission towers around. It will be better to have an operation ground with a concrete or soil surface, below which there must not be steel reinforcing bar structures, high-voltage cables, strong magnetic elements, or others. The operation ground should be consistently horizontal, with no slopes
2.The take-off/land site should provide a home-use electrical power source 8.5 kwatt to be used by the control station and the computer.
3.the take-off/land site should be equipped with a light source for operation.
4.The area below the drone show should be blocked. Do not allow people and cars to enter the area.
*** normally more than 120x60 meters***
The take-off /landing Site

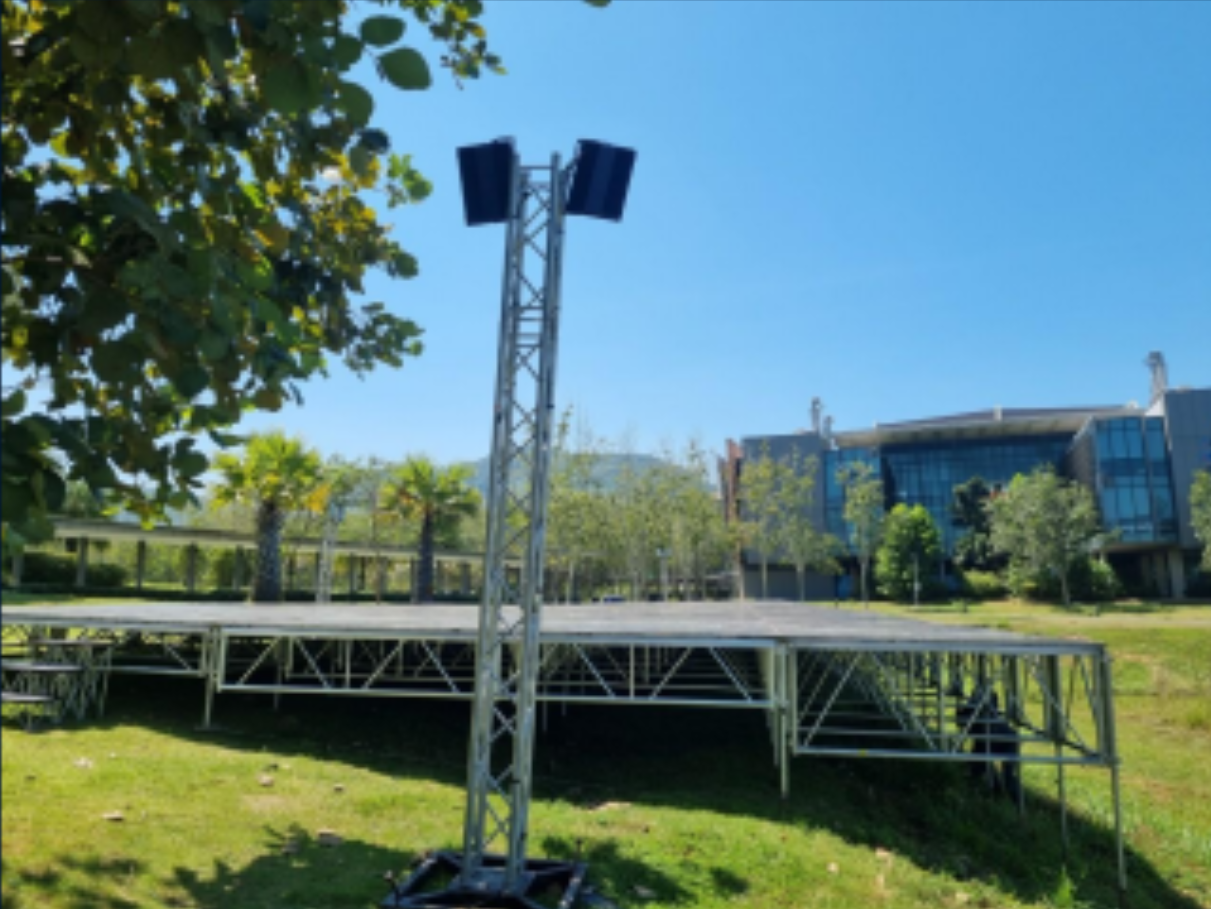

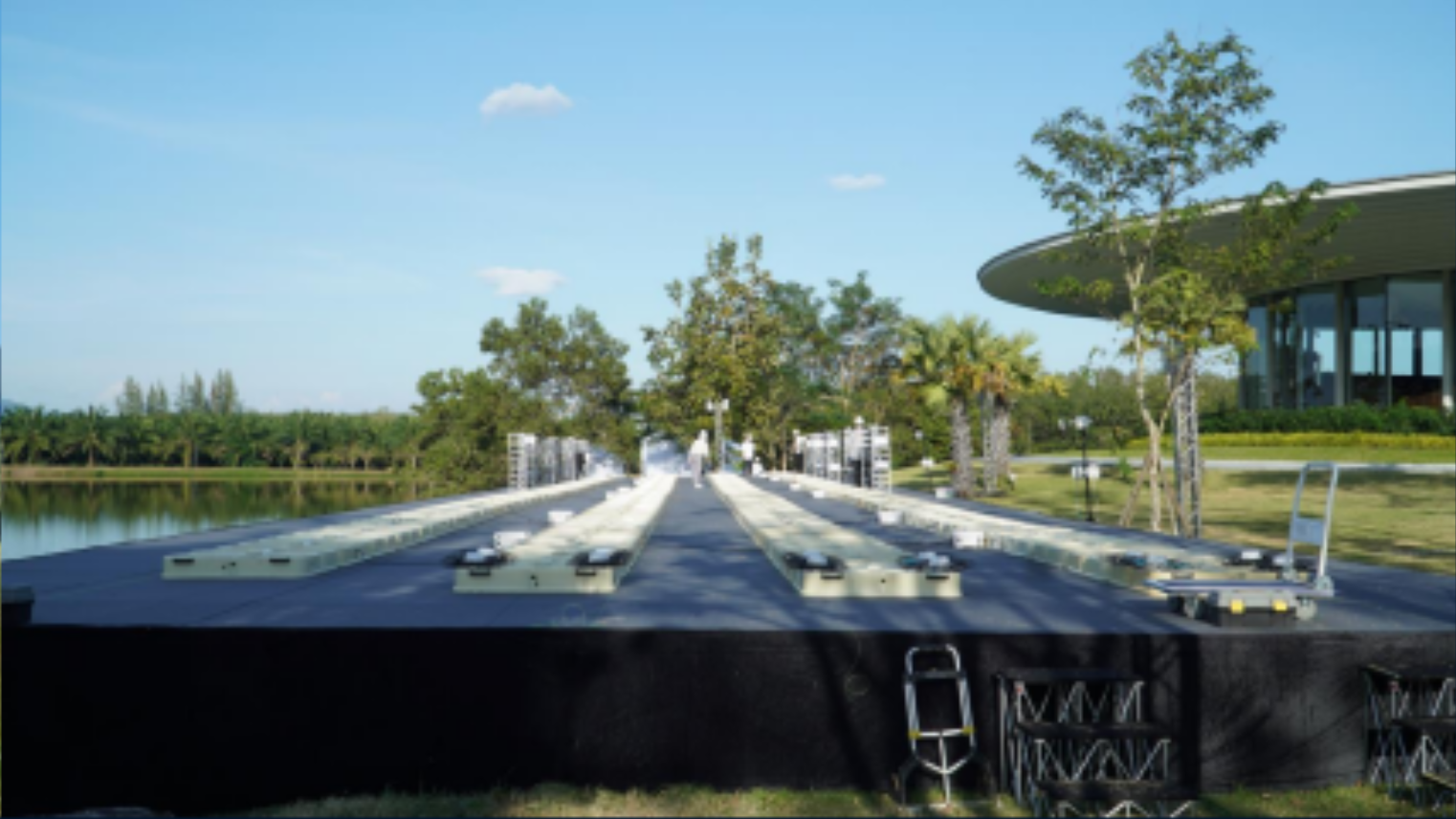

the take-off /landing Site In case operation ground be slopes should build the stage for consistently horizontal
.png)
.png)
.png)

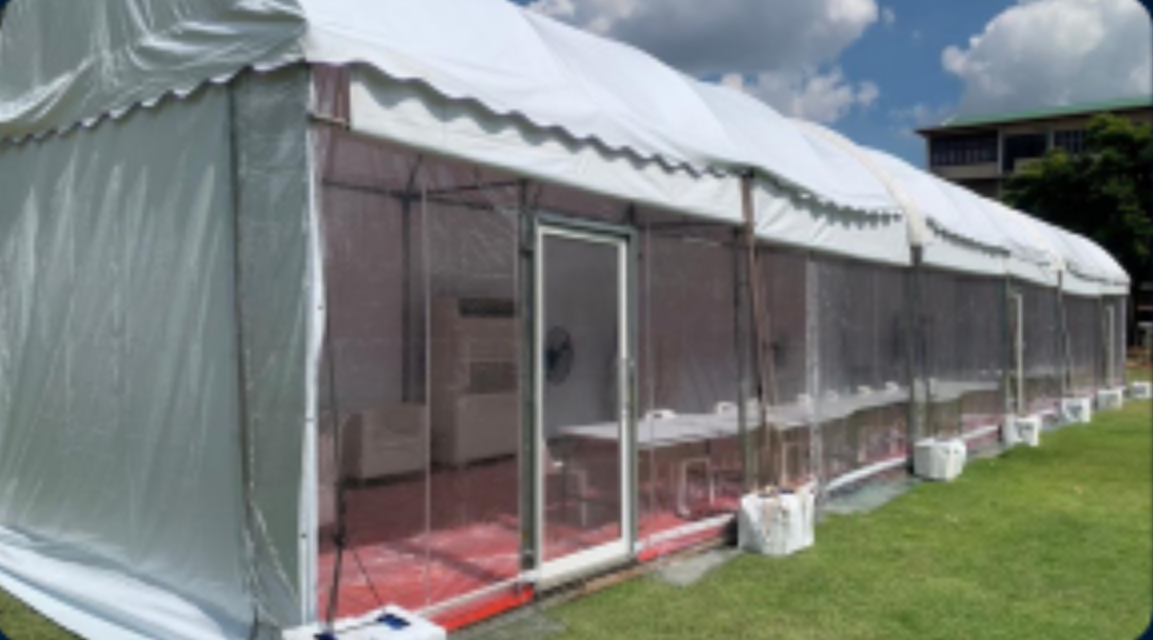

Storeroom
- The storage room needs to have an
area of more than 96 square meters
for equipment of 700 drones' storage.
and battery charging station
- The temperature should be controlled at around 18-25 degrees.
- the shortest distance between the storeroom and the take-off point is better, no steps are required (heavy materials are difficult to carry, and there are wheels to push)
- Sufficient fire extinguishers tools need to be prepared
- Have anti-theft conditions and arrange regular security inspections
- Electricity source 8 k Watt.
- Room or tent for store all equipment and operation area > 96 square meters. (for 700 drones)
- Furniture(table & chair) 15 set.
- Tent need to raised floor.
- without direct sunlight
