FIRE FIGHTING DRONE
38.7 kg
Max take-off weight
23.7 kg
Weight (including battery)
40 min
Max flight duration
10 m/s
Max flight speed

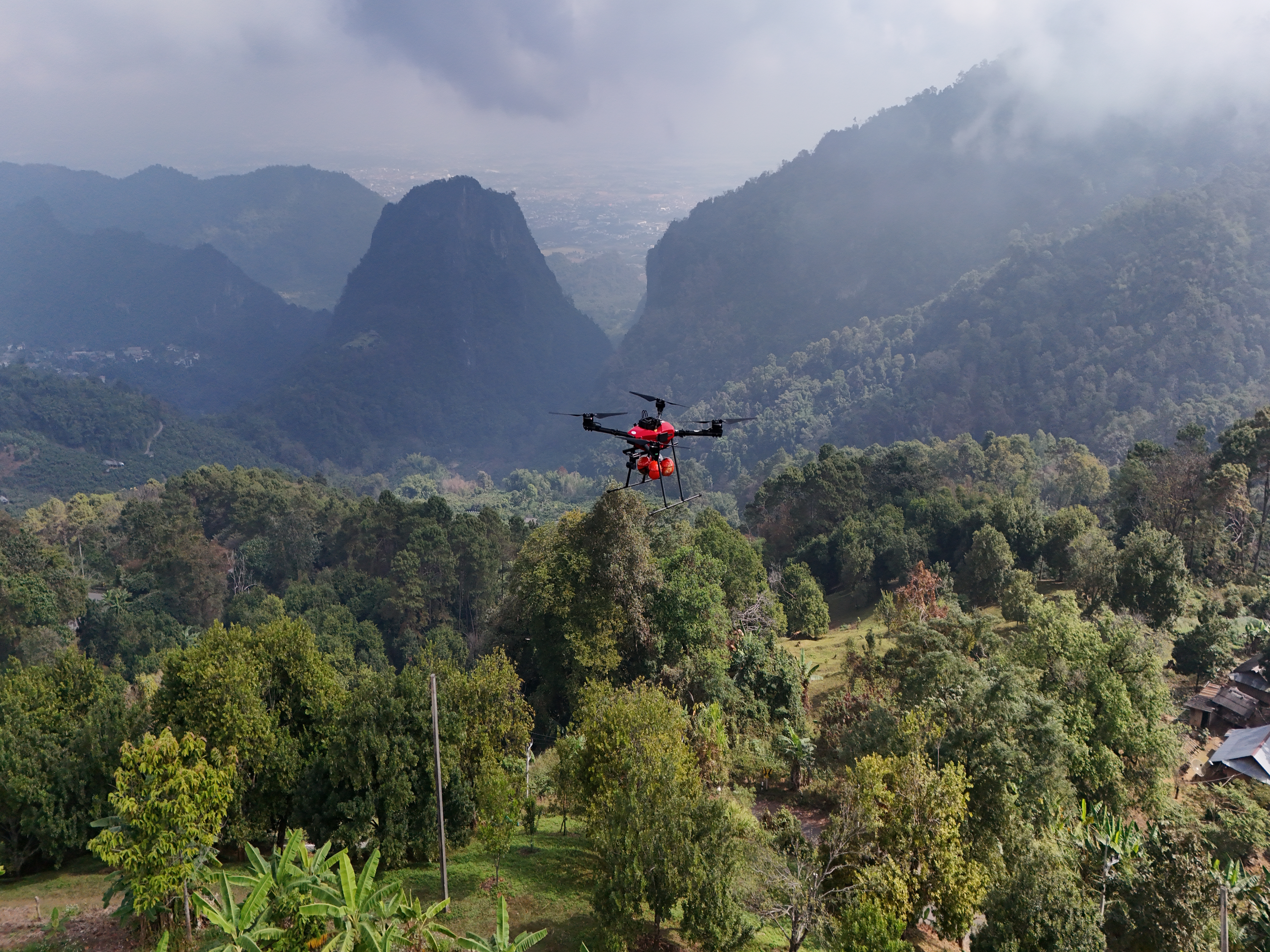

What is Firefighting Drone?

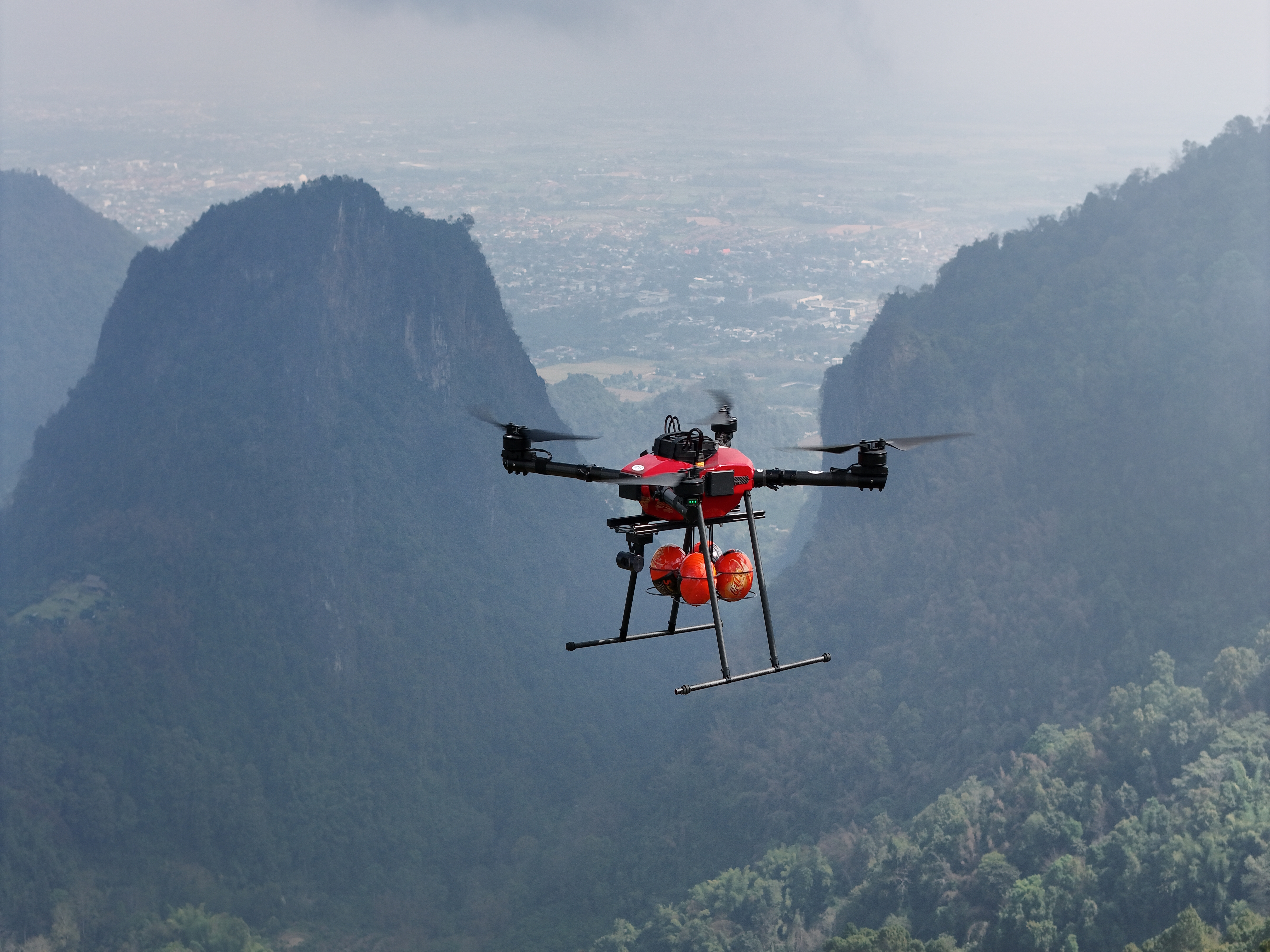

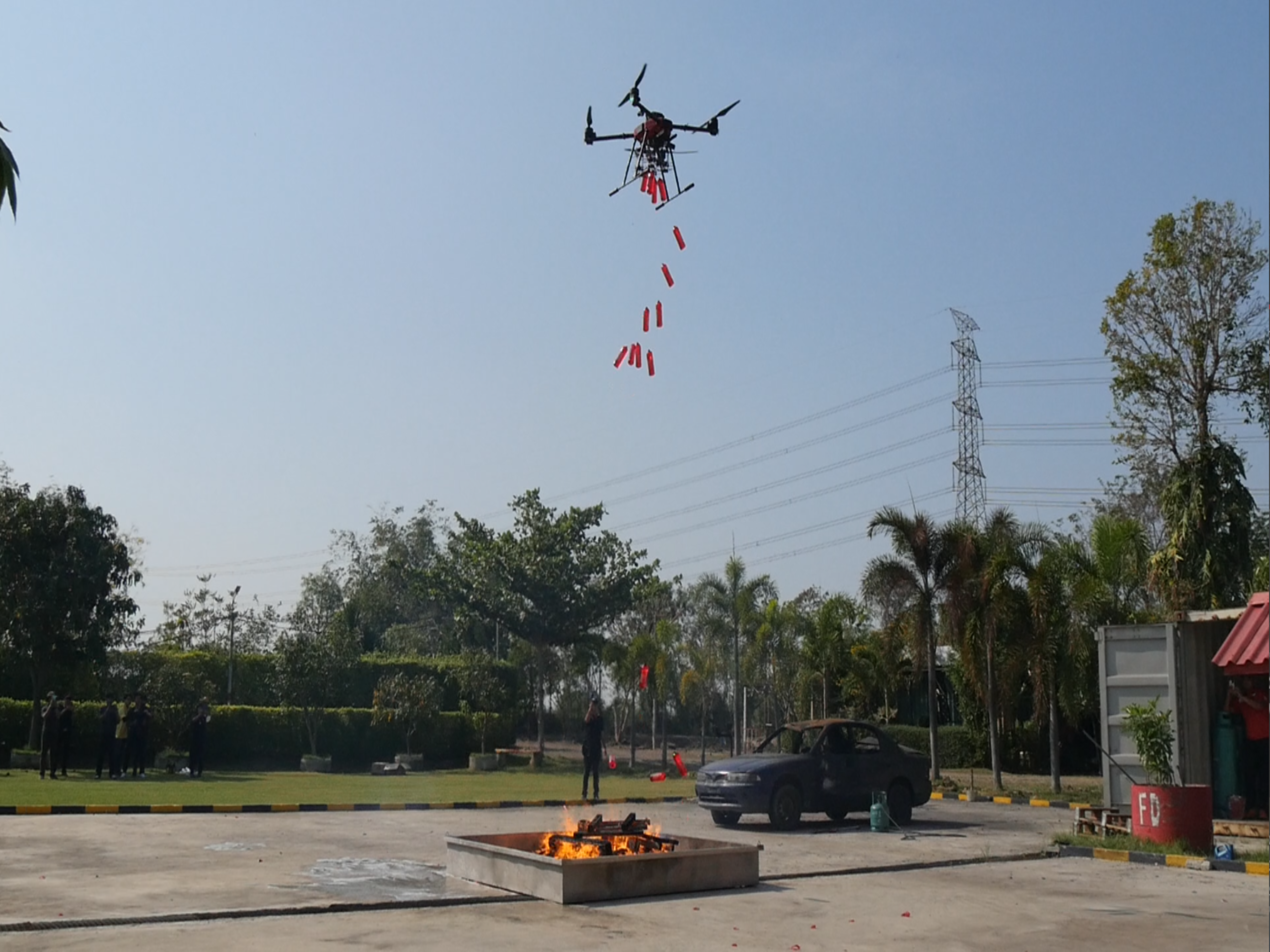

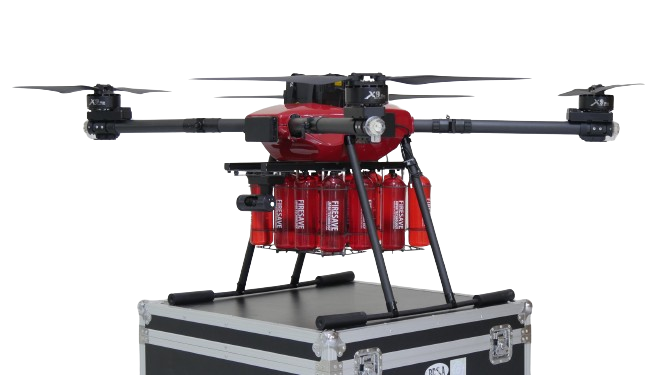

In the fireball deployment mission, officials will designate an approximate area for the drone to fly over and confirm the fire location. In cases where the exact coordinates are known, the coordinates can be directly input for the drone to navigate to that position immediately. The drone can carry 4-8 fire extinguishing balls, each weighing 1.4 kilograms. Once the drone detects a fire, it will descend close to the fire and drop the fire extinguishing balls. The balls will explode, dispersing fire extinguishing powder. After dropping the fireballs, the drone will use a thermal camera to check if the fire is extinguished.

Feature

Aircraft capable of vertical take-off and landing.

Suitable for flying missions that require heavy loads.

It is mainly used for ball dropping missions.

A small set of fire hoses can be installed.

Function
  • Automatic take-off and auto landing
  • Injection flow rate 16 L/min
  • Real time monitoring
  • Maximum service ceiling
Specification
Battery
  • Capacity 16000 mAh
  • Voltage 44.4 V
  • Energy 710 Wh Net Weight 4740 g
  • Battery type Lipo 12S1P 15C
Payload For Fire Extinguishing

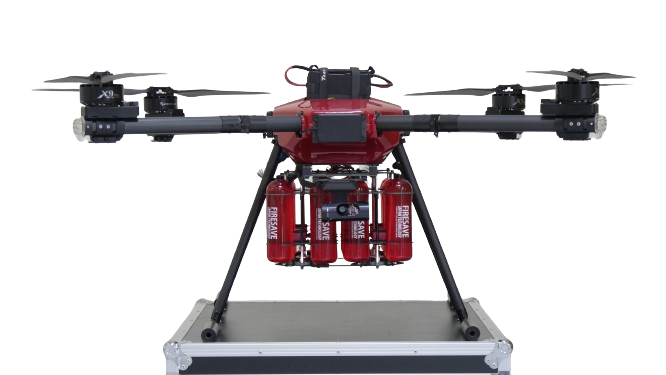

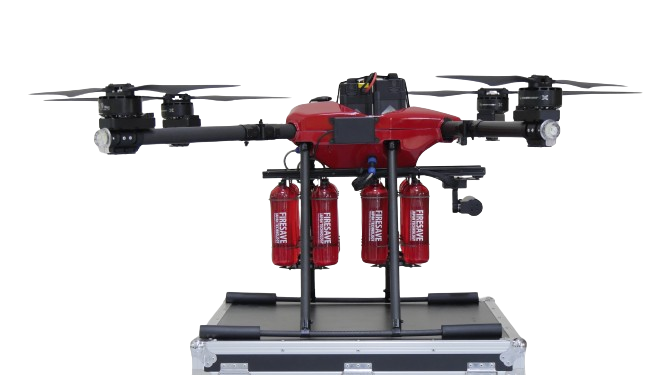

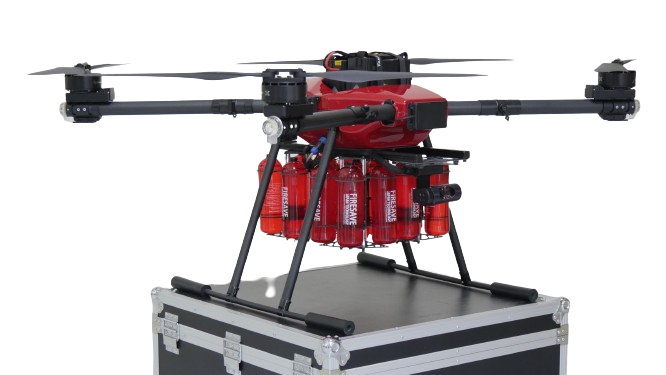

Bottle
Hoses
Ball
Our Products

MANUAL

The system is controlled manually.

  • Weight (including battery): 23.7 kg.
  • Maximum takeoff weight: 38.7 kg.
  • Maximum diagonal length: 139 cm.
  • Maximum flight speed: 10 m/s.
  • Maximum flight time (no wind): 40 minutes.
  • Maximum transmission distance: 15 km (FCC), 25 km.
  • Satellite positioning system: GPS/GLONASS.
  • Operating frequency: 2.4 GHz.
  • Maximum control distance: 7 km.
Front camera
Thermal imaging camera
Operates via mobile application
Automated movements
Automated spraying operations
No control room via 4G system

AUTO

The system is automatic control.

  • Weight (including battery): 23.7 kg.
  • Maximum takeoff weight: 38.7 kg.
  • Maximum diagonal length: 139 cm.
  • Maximum flight speed: 10 m/s.
  • Maximum flight time (no wind): 40 minutes.
  • Maximum transmission distance: 15 km (FCC), 25 km.
  • Satellite positioning system: GPS/GLONASS.
  • Operating frequency: 2.4 GHz.
  • Maximum control distance: 7 km.
Front camera
Thermal imaging camera
Operates via mobile application
Automated movements
Automated spraying operations
No control room via 4G system

INTERNET

The system is automatically controlled via the internet network.

  • Weight (including battery): 24 kg.
  • Maximum takeoff weight: 39 kg.
  • Maximum diagonal length: 139 cm.
  • Maximum flight speed: 10 m/s.
  • Maximum flight time (no wind): 40 minutes.
  • Maximum transmission distance: 15 km (FCC), 25 km.
  • Satellite positioning system: GPS/GLONASS.
  • Signal transmission frequency: 4G.
  • Maximum control distance: Unlimited (in areas with 4G signal).
Front camera
Thermal imaging camera
Operates via mobile application
Automated movements
Automated spraying operations
Control room via 4G system

CUSTOM

Depending on the customer's needs, You can contact and inquire beforehand.

Benefit
1 Year
Warranty
In case of system-related damage:
  • Free repair and replacement of parts
  • In case of damage caused by user error:
  • Free repair (Actual cost of parts will be charged)
  • 5 Day
    User Training Program
    70%
    Deposit Payment
    Upon order and the remaining
    amount after receiving the goods.
